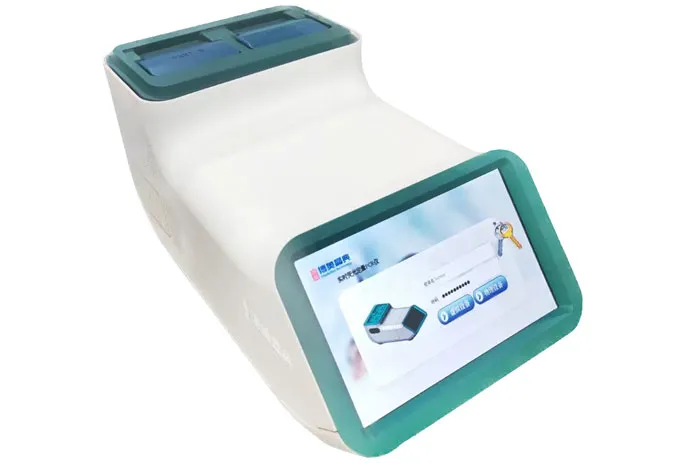

FS-3200 Real-Time PCR System

The FS-3200 Real-Time PCR System is a medium-throughput real-time quantitative PCR system developed by CapitalBiotech for qualitative and quantitative nucleic acid analysis and melting-curve analysis. The system features two independently operated 16-well modules (32 wells total), supporting flexible throughput. Applications include molecular research and, where appropriately validated or registered, pathogen testing, oncology-related testing, reproductive genetics, and pharmacogenomics.

Inquire Now

Features

  • Fast Thermal Cycling — Maximum heating rate: ≥10 ℃/s.

  • Multiplex Detection — Six fluorescence channels support simultaneous detection of multiple targets in a single tube.

  • Flexible Throughput — Supports 1–32 samples per run, with two modules that can operate independently.

  • Compact Design — Compact and lightweight for convenient placement and transport.


Applications

  • Basic research

Basic research: molecular cloning, gene expression analysis, and genotyping.

  • Medical diagnosis

Medical applications: pathogen detection, oncology-related testing, and reproductive genetics.

  • Food safety

Food safety: foodborne pathogen detection, microbial testing, and genetically modified organism (GMO) testing.


Specifications

Parameters

Description

Throughput1–32 samples
Maximum heating rate≥10 ℃/s
Maximum cooling rate≥6.5 ℃/s
Temperature control accuracy≤0.1 ℃
Reaction volume15–100 µL
Weight12 kg
Optical channels6 (FAM, HEX, ROX, Cy5, Quasar 705, FRET)
Fluorescence intensity detection precisionCV ≤3.5%
RepeatabilityCV ≤1.5%
Inter-channel fluorescence interference threshold100
Melting-curve range35.0–95.0 ℃
Dimensions490 × 265 × 250 mm
